Microwave Fuse Replacement: A Safe DIY Guide
Learn how to diagnose, safely replace, and test a microwave fuse with a practical, step-by-step guide from Microwave Answers, designed for home cooks and homeowners.
This guide explains how to diagnose and safely replace a microwave fuse, then test the appliance for proper operation. You’ll learn when to replace, which fuse to use, and the critical safety steps to avoid shock or fire. Follow the step-by-step instructions and use the right tools for a confident DIY fix.
Understanding microwave fuses and safety basics
A microwave fuse is a safety device that protects the appliance’s high‑voltage circuit from overloads and short circuits. There are different fuse types used in microwave ovens, including standard electrical fuses and temperature-triggered thermal fuses. Understanding their role helps you assess whether replacement is necessary. The Microwave Answers team emphasizes that high-voltage components can retain a dangerous charge even when unplugged, so always treat a microwave as potentially live and follow proper lockout/tagout practices. Do not bypass fuses or tamper with safety interlocks, which are designed to prevent arcing and shock. Always wear non-conductive gloves and work on a non-slip surface with dry hands. This knowledge foundation reduces risk and supports safe DIY work.
Diagnosing fuse-related symptoms safely
Symptoms of a blown fuse include the microwave failing to heat, no power in the display, or the unit tripping a circuit breaker when plugged in. Before replacing any component, verify the power is completely disconnected by unplugging the unit and turning off the circuit breaker if accessible. Use a non-contact voltage tester to confirm there is no live current near exposed terminals. If you notice blackened areas, a blown smell, or a blown base seal while inspecting, stop and reassess—such signs can indicate overheating or moisture ingress that require professional service. Document any symptoms with photos to guide future troubleshooting.
How microwave fuses are built and rated
Microwave fuses are designed to interrupt current when a fault occurs. They come in different ratings and physical sizes, so replacing a fuse requires matching the exact amperage rating, voltage rating, and the same style as the original. Many modern microwaves use fast-acting fuses for protection, while others include slow-blow variants to accommodate power surges. Always consult the model’s manual or the inside cover label to confirm the correct fuse type. Fendering compatibility is essential because a wrong rating can either fail to protect or blow excessively during normal operation. Keep a log of the fuse type you replaced for future reference.
Common fuse types and what they mean
Two common categories appear in microwaves: regular fast-acting fuses and thermal fuses. Regular fuses protect against short circuits and overloads in the electrical circuit, whereas thermal fuses protect against overheating by opening the circuit when a preset temperature is reached. In some models, a thermal fuse is a one-time safety device that, once opened, requires replacement of the entire safety assembly. Recognize the fuse by its physical attributes and labeling; the rating is typically etched on the metal body. Replacing with the wrong type can lead to nuisance trips or insufficient protection.
Safety considerations before you open a microwave
Opening a microwave involves exposure to high voltage, a live capacitor, and potentially sharp edges. Disconnect power at the wall, unplug the unit, and wait at least 60 seconds for residual charge to dissipate. Do not bypass interlocks or operate the oven with panel removed. Ground yourself to prevent static discharge, and store screws and parts in a labeled container to avoid misplacement. If you smell ozone or notice arcing sounds, power down immediately and seek professional help. These precautions reduce the risk of electric shock and injury during disassembly.
Preparing your workspace and choosing the right fuse
A clean, dry workspace with ample lighting makes fuse replacement safer and quicker. Gather essential tools: a screwdriver, multimeter or continuity tester, replacement fuse with the exact rating, insulated gloves, and a container to catch small screws. Inspect the replacement fuse for any damage or corrosion before installation. If you are unsure about the correct rating, consult the model’s service manual or the manufacturer’s customer support. Keeping documentation handy helps confirm the exact replacement part and avoids missteps during reassembly.
Step-by-step fuse replacement process (comprehensive overview)
Note: The detailed version is in the step-by-step block below. This section provides the core reasoning and safety context to help you understand why each action matters. Begin by ensuring power is completely disconnected and the area is dry. Access the fuse compartment carefully, remove the old fuse, verify the replacement matches the original specifications, insert the new fuse, reassemble, and perform a cautious test with the door open before closing the cabinet. Proper reassembly is crucial to maintain heat shielding and interlocks. By following the rated electrical parameters, you maintain safety margins and avoid design compromises.
Reassembly, testing, and post-replacement checks
Reassembly should restore all panels and securing screws without forcing any parts. Reconnect the power and perform a two-stage test: first, a no-load power-on self-check, then a controlled test with a safe load (e.g., a container of water) to verify heating and timing. Listen for unusual sounds and watch for smoke or sparks. If the display shows an error, unplug again and recheck the fuse position and interlock connections. If issues persist, consult a technician.
Cleaning up and long-term maintenance after fuse replacement
After a successful replacement and test, clean the interior surfaces with a dry or mildly damp cloth to remove fingerprints and dust. Store spare fuses in a labeled container and keep a simple log of the replacement date, rating, and model number for future reference. Regularly inspect door seals, hinges, and the interior for signs of wear that could contribute to arcing or overheating. Proper maintenance extends the life of the appliance and reduces unexpected outages.
Troubleshooting if replacement doesn’t fix the issue
If replacing the fuse does not restore function, the problem may lie elsewhere in the high-voltage circuit, magnetron, capacitor, or door interlocks. Recheck all connections, interlock switches, and the high-voltage transformer for signs of damage. Consider consulting the manufacturer’s service manual or contacting a qualified technician. Do not continue diagnosing advanced electrical faults beyond your comfort level, as missteps can pose serious hazards.
Authority sources
- U.S. Consumer Product Safety Commission: https://www.cpsc.gov
- Occupational Safety and Health Administration: https://www.osha.gov
- National Institute of Standards and Technology: https://www.nist.gov
Tools & Materials
- Safety gloves(Non-slip, heat-resistant, 1 pair)
- Screwdriver set (Phillips and flat-head)(Phillips #1 or #2 depending on screws)
- Non-contact voltage tester(Verify no live current before handling wires)
- Multimeter or continuity tester(Optional but recommended to confirm fuse continuity)
- Replacement fuse (same type and rating)(Match amperage, voltage, and physical size from the label/manual)
- Insulated needle-nose pliers(Useful for handling small components)
- Magnet tray or small parts organizer(Keeps screws and connectors secure)

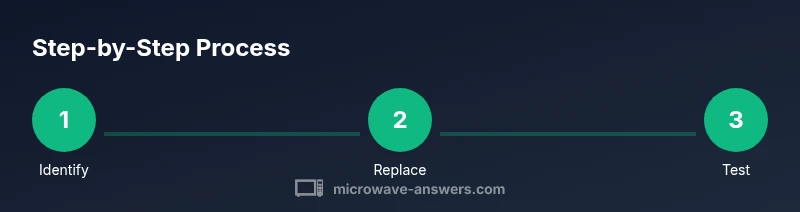

Steps
Estimated time: 45-75 minutes
- 1
Power down and unplug the microwave
Begin by unplugging the appliance from the wall outlet and, if possible, switching off the corresponding circuit breaker. This step is essential to prevent any residual current from charging the high-voltage system. Wait at least 60 seconds to allow capacitors and circuits to discharge. The pause helps minimize the risk of electric shock during disassembly.
Tip: Do not touch metal panels or exposed wiring while the unit is unplugged. - 2
Open the cabinet and locate the fuse
Use the appropriate screwdriver to remove access panels and gently lift the inner chassis cover. Locate the fuse in the high-voltage circuit area—often near the magnetron or power supply. Visually inspect for a blown glass tube, blackened ends, or a melted appearance. If you see obvious damage, you may already know replacement is needed.
Tip: Keep track of screws and small parts in a labeled container to avoid loss. - 3
Verify fuse type and rating
Check the fuse’s label or the appliance’s service manual to confirm the exact rating and size. If you don’t have the manual, note the markings on the fuse body and search the model number online. Matching the original amperage and voltage is crucial to maintain safety and performance.
Tip: If in doubt, replace only with the same type and rating. - 4
Disconnect and remove the old fuse
Carefully detach the fuse from its terminal or holder using insulated tools. Avoid pulling on wires directly. Inspect any fuse holder for damage or corrosion and clean if necessary before installing a new fuse.
Tip: Handle components with dry hands and minimal force. - 5
Install the new fuse
Insert the replacement fuse securely into the same position and ensure all connectors are snug. Double-check that the fuse is seated correctly and the holder is not loose. Reconfirm the alignment of any interlocks that may have shifted during disassembly.
Tip: Do not over-tighten screws, which can crack plastic parts. - 6
Reassemble the cabinet
Place the inner chassis cover back, reinsert all screws, and ensure a clean seal around the cabinet edges. Restore any shielding or foam gaskets as originally installed. Take care not to pinch wires during reassembly.
Tip: Tighten screws in a cross pattern to avoid warping the cover. - 7
Reconnect power and perform a cautious test
Plug the microwave back in and power it on with the door open. Listen for normal hum without arcing and verify the display powers up. If safe, run a short test with a minimal load under supervision. Observe for proper heating and response.
Tip: Do not run a full microwave load until you confirm safe operation.
Common Questions
Can I bypass a blown microwave fuse?
No. Bypassing a fuse removes essential protection and can cause electric shock or fire. If the unit still shows faults after replacement, seek professional service.
No. Never bypass a fuse; it protects you from shocks and fires. If replacing it doesn't fix the issue, contact a technician.
How do I know the fuse is really blown?
Signs include the microwave not heating, a tripped breaker, or a blown fuse indicator. You can verify with a continuity test or by inspecting for visible damage on the fuse.
Look for no heat, a tripped breaker, or a blown fuse indicator, then test with a meter to be sure.
Is it safe to replace a microwave fuse myself?
It is generally safe if you disconnect power, use the right tools, and follow the replacement steps. If you’re unsure about high-voltage components or interlocks, consult a professional.
It can be safe if you power it down and follow the steps carefully; otherwise get a pro.
What is the difference between a thermal fuse and a standard fuse in a microwave?
A standard fuse protects against electrical overloads, while a thermal fuse opens the circuit if the oven overheats. They serve different safety roles and require correct replacement parts.
A thermal fuse is temperature-triggered, while a normal fuse handles electrical overloads.
How long do microwave fuses last?
Fuses don’t have a fixed lifespan; they blow when overloaded or aged. If you experience frequent failures, there may be an underlying fault in the high-voltage circuit.
Fuses blow when they need to, usually due to an electrical fault inside the microwave.
Watch Video
Main Points
- Identify and confirm fuse type before replacement
- Use proper safety gear and unplug power before work
- Replace only with the exact fuse rating and type
- Test safely after reassembly before normal use
- Document the process for future maintenance
