Where Is Microwave Fuse Located: A Practical Guide
Learn where the microwave fuse is typically located, how to identify thermal vs. high‑voltage fuses, and safe steps to inspect or replace them. This practical guide from Microwave Answers covers models, risks, and maintenance to keep your oven safe.
In most microwaves, the fuse is located on the high‑voltage side—either on the primary of the high‑voltage transformer or as a thermal fuse near the magnetron. Start by unplugging the unit, removing the outer cover, and locating the fuse by following wiring to the transformer or control board. Do not bypass safety devices; replace with the exact type and rating.
Understanding the Role of the Microwave Fuse
The fuse in a microwave serves as a critical safety device that protects the appliance’s electrical circuit from overloads and overheating. If the fuse blows, the oven will stop heating even though the display and turntable may still work. The exact location of the fuse can vary by model, but its purpose remains constant: interrupt current when heat or electrical demand becomes unsafe. Understanding where the fuse sits helps you diagnose non‑heating symptoms without guessing. According to Microwave Answers, recognizing the fuse’s function lays the groundwork for safer inspections and service. Keep in mind that a fuse is not a resettable switch; when it opens, it must be replaced with the correct part and procedure to restore safe operation.
This section lays the groundwork for why fuses fail—overheating, aging components, and wiring problems are common culprits. By knowing the fuse’s role, you can distinguish between a simple blown fuse and more complex electrical issues that warrant professional attention. Home cooks and homeowners should approach any fuse inspection with caution, prioritize unplugging the unit, and respect the high‑voltage components involved. Safety first.
The Microwave Answers team emphasizes that fuse maintenance is part of regular appliance care. While you may be tempted to guess at the cause after a non‑heating symptom, a methodical approach reduces risk and increases the chance of a correct fix. This mindset also helps you identify when replacement beyond the fuse itself is needed, such as addressing door switches, the control board, or the transformer.
The goal of this guide is to equip you with practical steps, without encouraging dangerous disassembly or risky repairs. Always consult the model’s manual for fuse specifications and service procedures. If you’re unsure, stopping the repair and seeking professional service is the safest choice.
note”:null,
Tools & Materials
- Screwdriver set (Phillips #2, flathead)(For access panels and covers)
- Nut driver or socket set(If brackets or screws are recessed)
- Multimeter (optional)(Use to test continuity after replacing fuse)
- Replacement fuse (same type and rating) or service manual(Do not substitute with a different rating)
- Insulating gloves(Electrical safety while handling live components)
- Flashlight(Better visibility inside the cabinet)
Steps
Estimated time: 60-120 minutes
- 1
Power down and unplug the microwave
Unplug the appliance from the wall outlet and remove any nearby power cords or extension leads. This basic step eliminates the risk of electric shock while you inspect the interior. If your model has a detachable plug, ensure it cannot be reconnected during your work. Allow a few minutes for any residual charge to dissipate. Tip: Keep a photo or note of wire routing before disassembly to aid reassembly.
Tip: Double‑check the plug is out and the unit is fully disconnected from power before starting. - 2
Remove the outer cabinet or service panel
Using the screwdriver, remove screws along the back, sides, and bottom of the outer shell to access the internal components. Gently lift the cover or side panel, taking care not to disturb delicate wires or the magnetron assembly. If your model requires rear panel removal, follow the manufacturer’s instructions. Tip: Work on a clean, uncluttered surface to avoid losing screws or connectors.
Tip: Label screws by location or place them in separate containers to ease reassembly. - 3

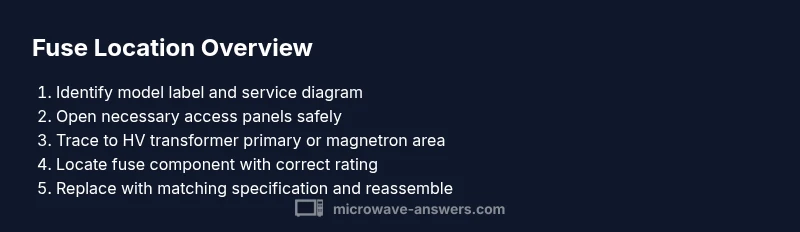

Locate the fuse assembly (HV transformer primary or thermal fuse)
Trace wiring from the main power line toward the high‑voltage transformer. Look for a small cylindrical component or a flat fuse mounted near the transformer or magnetron area. In some models, a thermal fuse sits in a ceramic housing near the magnetron. If you have the service manual, consult the fuse location diagram. Tip: If you see a blackened or burnt connector, stop and reassess with a pro.
Tip: Fuses are often clearly labeled on the board; if you can’t identify it, don’t guess. - 4
Inspect the fuse visually for damage
With the unit powered off, visually inspect the fuse for obvious signs of failure such as a broken filament, a blackened body, or a suspicious discoloration. If you cannot see a clear fault, use a multimeter to test continuity according to the manual’s guidelines. Do not perform voltage testing unless you are trained to handle high‑voltage circuits. Tip: Replace if there is any doubt about its integrity.
Tip: A blown fuse should be replaced with the exact same type and current rating. - 5
Install the replacement fuse and reassemble
Install a fuse of the same type and rating specified on the model’s label or in the service manual. Reconnect any connectors, reattach the cabinet, and secure all screws. Double‑check panel alignment to avoid rubbing wires or panels that could cause future faults. Tip: Handle the new fuse with clean gloves to prevent contamination from oils.
Tip: Avoid over-tightening screws to prevent panel distortion. - 6
Test the microwave and verify safe operation
Plug the unit back in and run a short test cycle without a loaded plate to confirm heat generation and control functions. If the unit heats normally and no unusual smells or noises occur, you may have resolved the issue. If the fuse blows again, there is likely an underlying problem such as a short or failed magnetron. Tip: If you are uncertain, stop and consult a professional technician.
Tip: Never leave the appliance unattended during the first test run after a fuse replacement. - 7
Document findings and plan preventive steps
Record the fuse type, rating, and replacement date for future service. Inspect venting and door switches to reduce the risk of overheating. Regularly clean the interior to prevent dust buildup around the cooling fan and transformer area. Tip: Schedule periodic checks, especially if the microwave is heavily used or runs for long periods.
Tip: Preventive maintenance reduces future fuse failures and extends appliance life.
Common Questions
What is the function of a microwave fuse?
A microwave fuse protects the circuit by interrupting current during overload or overheating, preventing damage and fire risk. It is a safety device that should be replaced with the correct rating when blown.
The fuse is a safety device that stops current if the microwave overheats or overloads, protecting the circuit.
Where is the fuse usually located in a typical microwave?
Most microwaves place the fuse on the high‑voltage side—either on the transformer’s primary or as a thermal fuse near the magnetron. Layout varies by model, so check the manual or a service diagram for your specific unit.
Usually near the transformer or magnetron; location can vary by model.
Can I bypass the fuse to fix the microwave?
No. Bypassing a fuse is dangerous and can cause shock, fire, or further damage. If a fuse keeps blowing, there is a fault that needs proper diagnosis and professional service.
Do not bypass safety devices; they protect you and your home from fire.
Is it safe to inspect the fuse myself?
Only if you have unplugged the unit and are following proper safety steps. If you’re unsure about the procedures, consult a professional to avoid shock or injury.
Only inspect if you’ve unplugged the unit and are confident in electrical safety.
Where can I find the service manual for fuse replacement?
Check your microwave’s model number on the label and visit the manufacturer’s website or customer support portal for the official service manual, which includes fuse specs and replacement procedures.
Look up your model’s manual on the manufacturer’s site for exact fuse specs.
Watch Video
Main Points
- Unplug before any inspection or disassembly
- Fuse location varies by model; always consult the service manual
- Replace with the exact fuse type and rating from the model label
- If unsure, call a trained technician rather than attempting risky repairs
