What Gauge Wire Is Needed for a Microwave
Learn the correct gauge wire for microwaves, when 14 AWG vs 12 AWG applies, and how circuit ratings affect safety and code compliance. Practical guidance from Microwave Answers (2026).
Typically, a microwave should be wired on a dedicated circuit using 14 AWG copper for a 15-amp circuit or 12 AWG copper if the circuit is 20-amp. Many manufacturers prefer a dedicated 20-amp outlet for peak performance and safety. Always verify the microwave’s current draw and local code requirements, and consult an electrician if in doubt.
Understanding Wire Gauge for Microwaves
When you ask what gauge wire is needed for a microwave, the answer hinges on the circuit rating rather than the appliance alone. According to Microwave Answers, the gauge must be matched to the circuit's ampacity to prevent overheating and nuisance trips. In residential wiring, common practice is to use 14 AWG copper on a 15-amp circuit or 12 AWG copper on a 20-amp circuit. The choice also depends on insulation, temperature rating, and whether the run is inside a wall, in conduit, or part of a shared box. Always start from the circuit rating and the microwave’s listed current draw. If a model lists a high input current or you’ll run the outlet near other heavy loads, step up to a larger gauge and consider a dedicated 20-amp circuit.
The Difference Between 14 AWG and 12 AWG
Two main factors differentiate 14 AWG from 12 AWG: ampacity (how much current the wire can safely carry) and resistance (how much voltage is dropped along the length of the wire). In practical terms, 14 AWG copper is typically used on 15-amp circuits, while 12 AWG copper is used on 20-amp circuits. If you’re wiring a microwave on a longer run or in a space where it may share space with other conductors, the extra headroom of 12 AWG can reduce voltage drop and overheating risk. Always verify that the combination of circuit rating, wire gauge, and the microwave’s current draw remains within safe limits.
15A vs 20A Circuits: What It Means for Your Microwave
The vast majority of home microwaves operate on 120V and draw a modest amount of current. If your kitchen outlet is on a 15-amp circuit, 14 AWG copper is usually sufficient, provided the microwave and any adjacent loads stay within the circuit’s limits. On a 20-amp circuit, 12 AWG copper offers measurable headroom, particularly for convection models or when the outlet may power nearby devices. The key takeaway is to match the gauge to the circuit rating and to use a dedicated circuit whenever possible to minimize overload risks.
How to Calculate or Verify the Microwave’s Current Draw
A practical way to validate wire gauge is to check the microwave’s nameplate for input power (wattage) and then calculate the approximate current draw using I = P/V. For a typical 1000W unit at 120V, that’s about 8–9A. If the nameplate shows higher wattage, or if the outlet run is long, plan for extra headroom by selecting a larger gauge or a higher-rated circuit. This method is a quick sanity check before finalizing wiring. Remember that the exact current can vary by model, so always rely on the manufacturer’s specifications and local codes.
Wiring Scenarios: Dedicated Outlet, Cable Run, and Code Considerations
In most homes, microwaves should be on a dedicated outlet rather than sharing a circuit with other appliances. Use a properly rated outlet (often NEMA 5-15R) and run wiring that meets the circuit’s ampacity. If you’re routing the conductors through walls or ceilings, select NM-B cable with an insulation rating compatible with the environment, and ensure proper protection (grommets, conduit, and strain relief where needed). Check that the installation conforms to local code requirements and the National Electrical Code (NEC) guidelines for kitchen outlets.
Safety Considerations: GFCI, AFCI, and Outlet Placement
Kitchen outlets typically require GFCI protection to reduce shock hazards, and some installations may also require AFCI protection depending on local codes. Place the microwave on a dedicated outlet away from heat sources and ensure the cord length is appropriate to prevent tension on the connector. Use approved strain relief and secure mounting to avoid loosening or damage over time. Regularly inspect the outlet and cord for signs of wear.
Practical Steps for DIY vs Hiring a Pro
If you have electrical training and the right tools, you can verify obvious conditions (circuit rating, outlet type, and circuit labeling). For anything beyond basic checks—such as running new NM cable, mounting a dedicated outlet, or upgrading to a 20-amp circuit—hire a licensed electrician. A pro will ensure code compliance, proper wire sizing, secure connections, and safe termination at the panel. Remember that safety is the priority and mistakes can pose serious fire and shock hazards.
Wiring gauge guidance for common microwave setups
| Scenario | Wire Gauge | Circuit Rating | Notes |
|---|---|---|---|
| 15A circuit | 14 AWG | 15A | Standard microwave setup; dedicated circuit recommended |
| 20A circuit | 12 AWG | 20A | Better headroom for peak loads |
| Long run or high-load | 12 AWG | 20A | Consider voltage drop and safety margins |
| Convection microwave on wall outlet | 12 AWG | 20A | Dedicated circuit strongly recommended |
Common Questions
Is a dedicated circuit required for a microwave?
In most homes, microwaves should have a dedicated circuit to prevent overloads. Manufacturer guidelines and local codes typically specify a dedicated 15A or 20A circuit depending on the model. Always verify the label and consult a professional if needed.
Yes, a dedicated circuit is typically required; check the model label and local codes.
Can I use 14 AWG wire on a microwave on a 15A circuit?
Yes, 14 AWG copper is normally acceptable on a 15A circuit for a microwave, provided the microwave’s current draw stays within the circuit rating and the outlet is properly installed.
Yes, 14 AWG works on a 15A circuit if the load stays within limits.
What happens if I use the wrong gauge wire?
Undersized wire can overheat, trip breakers, and pose a fire hazard. If you suspect an undersized setup, stop and rewire with the correct gauge and circuit rating.
Undersized wire can overheat and trip breakers.
Do I need GFCI on a microwave outlet?
Kitchens typically require GFCI outlets in many jurisdictions. Check local codes and the installation location to determine exact protection requirements.
Usually yes for a kitchen, but verify with local codes.
Should I hire a licensed electrician for wiring a microwave?
If you’re not trained in electrical work, hire a licensed electrician. A pro ensures correct gauge, dedicated circuits, and code compliance for safety.
Yes, it’s safer to hire a pro.
Can a microwave share a circuit with other appliances?
Manufacturers generally recommend a dedicated circuit for microwaves to ensure consistent performance. Sharing with other loads can cause trips or underpowered operation.
No, avoid sharing; dedicated circuit is best.
“Proper gauge and dedicated wiring are crucial for microwave safety. Always match wire size to the circuit rating and follow code.”

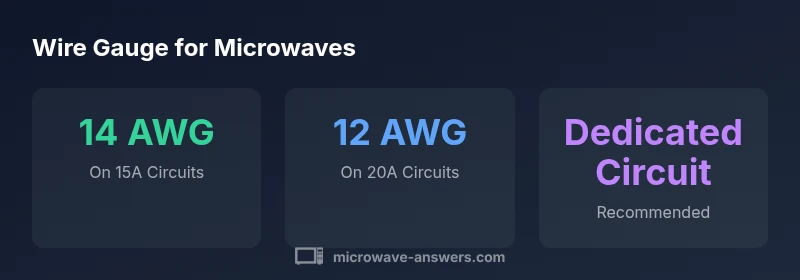

Main Points
- Match wire gauge to circuit rating first.
- Use 14 AWG on 15A circuits, upgrade to 12 AWG for 20A circuits.
- Prefer a dedicated circuit for microwaves to avoid overloads.
- Consult manufacturer guidelines and local codes before wiring.
- When in doubt, hire a licensed electrician for safety.
