How to Check Microwave Capacitor with Multimeter
Learn how to safely check a microwave capacitor with a multimeter. This educational guide covers safety, required tools, step-by-step testing (resistance and capacitance), interpreting results, and when to replace the capacitor.
Learn how to check a microwave capacitor with a multimeter. This guide outlines safety prerequisites, the exact steps to discharge and test the capacitor, and how to interpret resistance and capacitance readings. You’ll understand common fault signs and what to do next if readings are inconclusive.
Why testing microwave capacitor with a multimeter matters
Testing a microwave capacitor with a multimeter helps determine whether the part can safely store charge or if it has developed leakage that could cause arcing when the oven is operated. According to Microwave Answers, safety-first testing for a microwave capacitor begins with unplugging the unit and discharging the capacitor before any measurement. This is especially important when you want to answer the question of how to check microwave capacitor with multimeter, because you must verify both resistance and capacitance readings to gauge health. In practice, you’ll use your multimeter to perform two kinds of checks: a resistance test to look for leakage paths and a capacitance test to verify the stored charge matches the part's label. Readings outside the expected range can indicate a faulty capacitor, a wiring fault, or another component interfering with the measurement. Keep a log of your readings and compare them to the label values to decide whether replacement is needed. This process aligns with Microwave Answers’ approach to practical, safe testing for home repairs.
Safety prerequisites and risk awareness
Before touching any components, unplug the microwave and disconnect it from power. Never work on live circuits, as the high-voltage capacitor can retain a dangerous charge even after unplugging. Wear non-conductive gloves and eye protection, and work on a non-slip, insulated surface. If you’re unsure about your ability to safely discharge the capacitor, consult a professional. According to Microwave Answers analysis, mismanaging discharge is a leading cause of misleading readings, so prioritize safety and take your time to verify that the device is fully de-energized before any measurement. This section also explains why you should resist the urge to test with the microwave’s chassis open while powered: a live door switch or magnetron connection can create dangerous paths for current that produce inaccurate results. Establish a clean workspace and plan your steps in advance to avoid rushing through the checks.
Tools and safety gear you’ll need
Prepare a safe work kit: digital multimeter with resistance and capacitance modes, insulated gloves, safety goggles, and a discharge tool or resistor rated for high-wattage. Keep a non-conductive mat or board to isolate the microwave from the work surface. Remove jewelry and ensure dry hands to prevent accidental shocks. A notebook or app for recording readings helps you compare results over time. If your multimeter cannot measure capacitance, you’ll need a separate capacitance meter or access to a meter with a capacitance function. This block reinforces the idea that a thorough, careful setup reduces the risk of harm and improves measurement accuracy. Remember: the goal is to verify safety and accuracy, not to rush the test. As Microwave Answers emphasizes, preparation is part of the test itself.

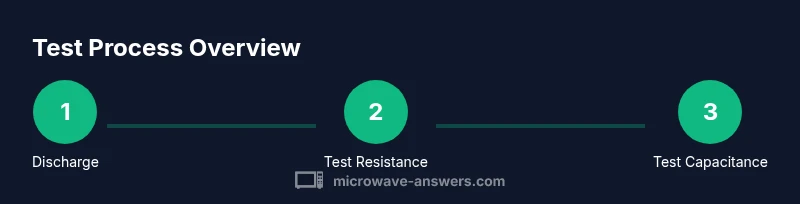

Step-by-step: prepare, unplug, and discharge safely
First, unplug the microwave from any outlet and verify no power is present. Then, open the cabinet to access the capacitor, but do not touch any exposed wiring until you are sure the unit is fully de-energized. Use a discharge tool or a high-wattage resistor to bleed the capacitor’s stored energy by bridging the leads with the tool—do this calmly and steadily to avoid sparks. After discharging, confirm there is no residual charge by measuring across the leads with the multimeter on a high-resistance range; readings should approach infinity. Finally, recheck that the area is dry, clean, and free of shorts before proceeding to resistance testing. This step-by-step ensures you’re working safely and that readings reflect the capacitor’s true condition. Pro tip: keep the capacitor leads separated during discharge to avoid accidental shorting. Warning: never attempt to discharge with the unit plugged in or with live components exposed.
Resistance test: checking for leakage paths
With the capacitor discharged, set the multimeter to a high-ohm or continuity range and place the probes on the capacitor terminals. A healthy capacitor should show very high resistance that remains steady; a slow climb toward infinity is acceptable as the dielectric charges redistribute. If you see a low resistance that remains constant or fluctuates, there may be leakage or a short to the chassis. Record the reading and compare it to the capacitor’s rated resistance and typical leakage expectations (usually described in service literature). If you observe any unexpected continuity, stop the test and reassess safety steps. This section highlights that resistance testing primarily tells you about leakage rather than stored charge, which requires capacitance testing to verify.
Capacitance test: verifying stored charge against the label
Switch the multimeter to capacitance mode. Place the probes on the capacitor leads and read the value. Compare the measured capacitance to the value printed on the capacitor label; a close match indicates the dielectric is intact. If the reading is significantly lower than the rated value, it likely indicates dielectric breakdown or aging. If your meter lacks capacitance measurement, you can’t reliably confirm health using this metric alone; consider using a dedicated capacitance meter or an ESR meter for more advanced checks. Always document the measured value and the nominal rating for future reference. This step is crucial because capacitance tolerance directly affects the microwave’s ability to start and heat consistently, and a faulty capacitor often manifests as intermittent operation or no heat.
Interpreting readings and deciding on replacement
A healthy capacitor typically shows high resistance in resistance tests and a capacitance value within tolerance of the label. If either metric falls outside acceptable ranges, plan for replacement. Before replacing, verify that the wiring is intact and that there aren’t other faulty components, such as the door interlock or magnetron, contributing to the problem. If you’re unsure, consult the microwave’s service documentation or a professional technician. The aim is clear: confirm whether the capacitor fails safety and performance tests before committing to a replacement, since a faulty capacitor is a hazard and a common repair candidate.
Common mistakes and troubleshooting tips
Common mistakes include skipping proper discharge, using a damaged meter probe, or testing while components are still connected. A small mistake can produce misleading readings or create a shock hazard. Always re-check unplugged status after any safety break and avoid measuring with wet hands or on a metal surface. If readings are inconclusive, re-discharge, re-test, and compare with the label or service manual. If you’re unsure about any result, stop and seek help from a qualified technician. Microwave Answers highlights the importance of meticulous testing and safe practices to prevent damage and injuries.
Documentation, next steps, and ongoing safety
Record the readings, the model and rating of the capacitor, and the date of testing. Store this information in a repair log to track component aging. If you replace the capacitor, verify that the new part has the same or better rating and that the installation is secure. After reassembly, perform a quick functional test (without running the oven at full power) to ensure proper operation and absence of arcing or unusual smells. Finally, check the area for heat marks or discoloration and clean up your workspace. This closing block reinforces the practical habit of documenting checks for future maintenance and safety audits.
Tools & Materials
- Digital multimeter (resistance and capacitance modes)(Capacitance range should cover typical microwave values (e.g., up to several hundred nanofarads).)
- Discharge tool or high-wattage resistor(Use a resistor or tool rated for high wattage to safely bleed the capacitor charge.)
- Insulated gloves(Non-conductive gloves to protect hands during handling.)
- Safety goggles(Eye protection in case of unexpected arcing or sparks.)
- Insulated work surface/mat(Keeps the area non-conductive and dry.)
- Non-metallic tools (insulated screwdriver, pliers)(To access components without creating shorts.)
- Notebook or digital log(Record readings for comparison over time.)
Steps
Estimated time: 20-40 minutes
- 1
Unplug the microwave and verify power is off
Pull the microwave’s plug and try a basic safety test to ensure no power is reaching the unit. This prevents any accidental shock while you access the capacitor. If you’re unsure, confirm with a voltage tester at the outlet before beginning the work.
Tip: Never rely on visualization alone; always physically unplug and test for power. - 2
Open access panel to locate the capacitor
Carefully remove the outer cover or access panel following the manufacturer’s service manual or standard safety practices. Identify the capacitor by its cylindrical shape and two leads, usually mounted near the high-voltage area.
Tip: Label wires before disconnecting to ensure correct reassembly. - 3
Discharge the capacitor safely using a resistor/tool
Bridge the capacitor leads with a discharge tool or a high-wattage resistor to bleed off stored energy. Do this slowly and steadily to minimize arcing. Do not touch the leads during discharge.
Tip: Keep your gloved hand away from the leads while discharging. - 4
Confirm the capacitor is discharged with the multimeter
Set the multimeter to a high-resistance range and measure across the leads. A healthy, discharged capacitor will show very high resistance (approaching infinity) and no sudden drop in resistance as you hold the probes.
Tip: If you see a low or fluctuating resistance, stop and re-discharge. - 5
Test resistance for leakage paths
With the capacitor still disconnected but accessible, test across the leads using the ohm setting. A steady, very high resistance indicates no leakage; a low or erratic reading suggests leakage. Note the reading for your records.
Tip: Record the exact resistance value and the meter range used. - 6
Test capacitance (if your meter supports it)
Switch the meter to capacitance mode and place the probes on the capacitor leads. Compare the measured capacitance to the labeled value. A close match indicates the dielectric is in good condition; a significant deviation means aging or damage.
Tip: If capacitance is out of tolerance, plan for replacement. - 7
Document results and plan next steps
Log the model, label, readings, and date. Decide whether replacement is needed based on leakage and capacitance results. Reassemble the unit only after all checks are complete and the area is dry.
Tip: Keep a repair log for future maintenance. - 8
Reassemble and perform a light functional check
Put the cover back, restore power, and run a short test cycle (no heat) to ensure no arcing or abnormal smells. If there are any issues, power down immediately and consult a professional technician.
Tip: Do not run the microwave at full power until you’re confident the capacitor and nearby components are safe.
Common Questions
Is it safe to test a microwave capacitor with the unit unplugged?
Yes. Always unplug the microwave and discharge the capacitor before testing. Live circuits can retain dangerous charges, so safety comes first.
Yes, unplug first and discharge the capacitor before testing to avoid shock.
What readings indicate a healthy capacitor when tested with a multimeter?
A healthy capacitor should show very high resistance in resistance tests and a capacitance value close to the label. Low resistance or a capacitance far from the rating suggests degradation or leakage.
High resistance and close-to-label capacitance indicate a healthy capacitor.
What if my meter doesn’t have a capacitance setting?
If your meter lacks capacitance mode, you can still test leakage with resistance and use a dedicated capacitance meter or an ESR meter for the capacitance check. Without capacitance measurement, you may miss aging effects.
Without capacitance mode, you can test leakage but may need a separate meter for capacitance.
Can a bulging capacitor still pass a basic ohm test?
Bulging or venting capacitors should be replaced immediately, even if a basic ohm test seems to pass. Physical signs indicate seal failure and risk of rupture.
A bulging capacitor should be replaced regardless of tests.
Should I replace the microwave if the capacitor tests bad?
If the capacitor fails resistance or capacitance checks, replacing the capacitor is usually the safest first repair. If issues persist after replacement, consult a technician.
Yes, replace the faulty capacitor first, then re-test.
What else could cause a microwave to fail besides a faulty capacitor?
Other causes include a faulty door interlock, magnetron, high-voltage diode, or control board. A full diagnosis may be required if the symptoms persist after capacitor testing.
There could be multiple causes beyond the capacitor, like the door switch or magnetron.
Watch Video
Main Points
- Discharge before testing to avoid shocks
- Use resistance to assess leakage and capacitance to confirm value
- Record readings and compare to label values
- If in doubt, replace the capacitor and consult a technician
