This guide answers what wire is needed for a microwave range hood and how to select the correct gauge, insulation, and grounding. You will learn the basic electrical requirements, when to upgrade circuit capacity, and how to verify compliance with local codes before starting installation. Use this quick answer as a roadmap for a safe, code conscious setup.

What determines the wire for a microwave range hood

When planning any electrical install in the kitchen, the first question is: what wire is needed for a microwave range hood? The answer hinges on several factors: the hood's electrical rating, the supply voltage, the circuit's overcurrent protection, and whether you will run a dedicated line or share a circuit with other appliances. The hood itself is a 120-volt appliance in most homes, and its label will list the required amperage and the conductor size recommended by the manufacturer. In practical terms, you must match the hood's amperage draw to a circuit that can safely deliver that load without tripping a breaker or overheating conductors. Local codes may also require a separate branch circuit for range hoods, and a ground fault circuit interrupter (GFCI) is sometimes recommended in damp locations. Therefore, understanding the hood's rating and the circuit that will feed it helps you decide between a 14 gauge or 12 gauge copper wire, and whether you need a 3 wire or 4 wire setup.

Electrical basics you should know before wiring

Before touching wiring, refresh your understanding of the basics: voltage, current, resistance, and how they interact with conductor size. In a typical residential kitchen, the standard supply is 120 volts, and the overcurrent protection is provided by a 15 or 20 amp breaker. The conductor size must be able to carry the circuit current safely without overheating. Wire types commonly used in indoor fixed installations are NM cable with copper conductors, with or without ground, in 14/2 or 12/2 configurations. If you encounter aluminum wiring, do not mix it with copper without specialized connectors. Always plan for a dedicated circuit for the hood to avoid overloading shared fans, lights, or outlets. Finally, ensure you know how to read a label on the hood that specifies required wire gauge, conductor count, and grounding method.

Wire gauges and conductor types for range hoods

Selecting the correct conductor gauge is crucial. For most 120-volt range hoods, 14 gauge copper conductors on a 15 amp circuit are common; for 20 amp circuits, 12 gauge conductors are typical. In a new installation, you may run 12/2 or 12/3 NM cable with ground to allow a dedicated line and the possibility of future upgrades such as dual fan speeds or integrated lighting. The choice between two wire and four wire connections depends on whether the hood uses a separate grounding conductor and whether your local code requires separate equipment grounding. If your hood requires a neutral and separate ground, you will typically use 12/2 with ground or 12/3 with ground. If the hood is a simple 120V device, 14/2 with ground may suffice on a 15A circuit. Always verify the manufacturer’s label and local code requirements.

Safety and code considerations

Electrical work in the kitchen is not DIY for everyone. Always shut off power at the service panel before removing any cover or touching wiring. Check for power with a non contact tester. Follow the National Electrical Code guidelines and local amendments; some jurisdictions require a permit for installing a range hood on a dedicated circuit. Grounding is essential; never leave a bare conductor exposed. If you encounter unusual wiring such as aluminum conductors, use approved connectors and consider professional assistance. When in doubt, contact a licensed electrician. In damp locations or above a cooking area, consider using GFCI protection as specified by local code. Lastly, seal any penetrations with proper bushings and strain relief to prevent movement that could loosen connections.

Planning the installation: circuit, lines, and connections

Start by choosing the circuit: either a dedicated 15A or 20A branch that is protected by a corresponding breaker. Plan the run path from the hood to the electrical box. Consider routing through a cabinet back panel, an accessible ceiling chase, or a stud cavity, avoiding sharp edges and high-traffic areas. Use proper strain relief fittings where the wire enters the hood and the junction box. Contain all splices inside a listed electrical box with a cover plate. If you need to extend wiring, use the correct splice connectors and maintain continuous grounding. Label the circuit at the panel and at the hood so future service calls are straightforward.

Reading the hood's label and matching it to the circuit

Manufacturers provide a wiring label on the hood that specifies the required conductor size, the number of conductors, and whether a ground is required. Read this label carefully and compare it with your planned circuit rating. If the hood lists 12 AWG and a 20 amp circuit, you should use 12/2 or 12/3 copper with ground and protect the branch with a 20 amp breaker. If the label allows 14 AWG on a 15 amp circuit, 14/2 with ground is acceptable. Always ensure the neutral and grounding conductors are correctly terminated in the hood’s terminal block and the junction box. Double check that your wiring method meets local rules and the hood’s installation manual.

Common mistakes and how to avoid them

Mistakes people make include using undersized wire, sharing a circuit with other high load devices, skipping a dedicated ground, and failing to secure cables. Do not reuse a damaged NM cable. Do not staple wires too close to the hood's connection box; maintain the required clearance from heat sources. Avoid using power strips or extension cords for a permanently installed hood. Finally, never loosen terminal screws after power is restored. Take your time to verify each connection with a meter before reassembling the hood.

Pre wiring checklist and final safety checks

Use a pre wiring checklist to ensure nothing is missed. Confirm that the power is off at the panel, test for absence of voltage at the conductors with a voltage tester, and confirm the cable type and gauge match the hood's requirements. Ensure that the junction box is accessible and that there is a strain relief for both supply and hood connections. Confirm that the grounding is intact and the wiring is organized with proper clamps and staples. Finally, replace all covers and restore power briefly to test the hood at low speed, verifying no arcs, sparks, or overheating appear.

Aftercare: testing, labeling, and maintenance

After the hood is installed, keep a log of the wire gauge, circuit size, and the hood model. Record the make and model of the hood, the wiring method, and any splices. Periodically check connections and the condition of the wire sheathing for wear, especially where the cable enters the hood and the junction box. If you notice any burnt smells, warm surfaces, or tripped breakers, stop using the hood and re check the connections. Keeping a simple maintenance routine will help prevent electrical issues and prolong the life of your range hood.

Tools & Materials

  • Non-contact voltage tester( Verified power is off before touching conductors)
  • Screwdriver set (Phillips and flathead)( Have both small and medium sizes)
  • Wire stripper/culler(For precise conductor preparation)
  • Needle-nose pliers(For bending and twisting wires)
  • Tape measure(Plan runs and trench lengths)
  • Electrical tape and wire nuts (assorted sizes)(Secure and insulate splices)
  • 14/2 NM cable with ground(For 15 A circuits; optional if you plan 12/2)
  • 12/2 NM cable with ground(For 20 A circuits)
  • Junction box (18 cu in or larger)(Provide safe termination and access)
  • Cable clamps and strain relief(Prevent movement and protect entry points)
  • Grounding pigtail and connectors(Ensure proper grounding continuity)
  • Cable connectors for aluminum or mixed wiring(Use only with proper rated connectors)

Steps

Estimated time: 2-4 hours

  1. 1

    Verify hood rating and circuit

    Check the hood label for amperage and conductor size. Confirm the planned circuit can supply the hood without overloading the panel. This step prevents undersized wiring and nuisance tripping later.

    Tip: Always start with the hood label and your panel rating.
  2. 2

    Plan routing and select wiring path

    Map a route from the panel or existing junction box to the hood location. Avoid running wiring across heat sources and sharp edges. Decide whether you will use a wall cavity, ceiling chase, or cabinet back panel to conceal the wire.

    Tip: Keep bends gentle and use staples every 4 to 6 feet.
  3. 3

    Shut off power and verify no voltage

    Turn off the appropriate breaker and use a non contact tester to confirm that the circuit is dead before touching any conductors. This step protects you from electric shock during splicing and mounting.

    Tip: Test multiple points along the run before handling wires.
  4. 4

    Install or locate a suitable junction box

    Choose a box that matches the length of the run and the number of conductors. Mount it in a accessible location and secure with screws. This creates a safe, code-compliant termination point for splices.

    Tip: Leave enough space inside the box for a full strain relief.
  5. 5

    Run the wiring to the hood location

    Carefully pull the selected cable through walls or ceilings, keeping it protected and untwisted. Secure the cable with clamps and avoid crushing the insulation. Leave extra length at the hood for easy connection.

    Tip: Avoid kinks by using a fish tape or pull string.
  6. 6

    Make splices and connect conductors

    Inside the junction box, splice or terminate conductors using listed wire nuts. Maintain a neat arrangement and strip only the necessary insulation. Bond the ground conductor to the box and hood terminal block as required.

    Tip: Use pigtails to simplify future replacements.
  7. 7

    Attach ground and install strain relief

    Ensure a solid equipment ground back to the panel. Install strain relief on the entry to the hood and on the supply side to prevent movement that could loosen connections.

    Tip: Check that the strain relief clamps are fully seated.
  8. 8

    Test, mount, and verify operation

    Restore power and test the hood at low speed. Look for smooth operation, verify no buzzing, arcing, or overheating, and recheck all terminal screws after a few minutes of steady operation.

    Tip: Have a helper stand by to observe any abnormal behavior.
Pro Tip: Plan runs to minimize bends and avoid heat sources that could degrade insulation.
Warning: Do not mix aluminum wiring with copper without approved connectors and professional guidance.
Note: If the hood requires a neutral and a separate ground, verify the wiring configuration matches the diagram.
Pro Tip: Document every splice with a label for future maintenance.

Common Questions

Do I need a licensed electrician to wire a microwave range hood?

Wiring a range hood should follow local electrical codes. For complex installations or uncertain circuits, hire a licensed electrician to ensure safety and compliance.

Wiring a hood should follow code; for complex work hire a licensed electrician.

Can I reuse an existing receptacle circuit for a range hood?

In most cases, the hood should have a dedicated circuit to avoid overloading other devices. If there is any doubt about available capacity, consult a professional.

Usually not; dedicated circuit recommended.

What gauge wire is typical for a 15A hood circuit?

For a 15A circuit, 14 gauge copper wire is typical with a 15A breaker. Always verify with the hood label and local codes.

Usually 14 AWG on a 15A circuit.

What gauge should I use on a 20A hood circuit?

For a 20A circuit, use 12 gauge copper wire and a 20A breaker, as recommended by many hood manufacturers and code guidelines.

Typically 12 AWG on a 20A circuit.

What safety precautions should I take during installation?

Turn off power at the panel, verify with a tester, wear protective gear, and keep water away from work areas. Follow manufacturer instructions and local code requirements.

Turn off power and verify with a tester before starting.

What should I do if I smell burning or see arcing?

Shut off power immediately at the service panel and do not resume until a qualified electrician has inspected the installation. Do not use the hood in this condition.

Shut off power and call a professional if you smell burning.

Watch Video

Main Points

  • Identify hood rating and circuit requirements
  • Use correct gauge wire for the circuit
  • Run wiring on a dedicated circuit when possible
  • Follow local codes and manufacturer instructions
  • Test thoroughly before final mounting

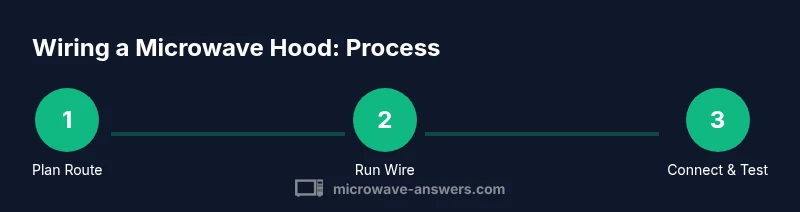

Process diagram showing plan, run, connect and test steps for wiring a microwave hood
Wiring a microwave hood: a simple 3-step process
