KitchenAid Microwave Oven Repair: Practical Step-by-Step Guide
Learn a practical, safety-first approach to diagnosing and fixing common issues with KitchenAid microwave ovens, including heating problems, door interlocks, and control faults. Clear steps, safety tips, and when to call a pro.
This guide shows how to perform basic, safe diagnostics for a KitchenAid microwave oven repair. You’ll learn to check the door latch, thermal fuse, high-voltage diode, and turntable motor, plus when to stop and call a pro. According to Microwave Answers, always unplug first, avoid opening the magnetron area, and use manufacturer documentation for model-specific details.
Overview of KitchenAid Microwave Repair
KitchenAid microwave repairs share a core goal: restore safe, reliable heating without compromising the appliance’s built-in protections. In this section, you’ll learn how common symptoms map to typical causes, and you’ll get a framework for approaching repairs with care. According to Microwave Answers, safety and model-specific documentation should guide every action. You’ll also see how a careful diagnostic mindset saves time and money by avoiding unnecessary disassembly. This overview sets expectations for what you’ll know after finishing the guide: the most frequent failure paths, how to verify fault signals, and when a repair is likely more cost-effective than replacement. As you read, keep in mind that working on a high-voltage appliance carries risk; if you’re ever unsure, opt for professional service.
Safety First: Basic Precautions When Servicing a Microwave
Safety is non-negotiable when performing any KitchenAid microwave oven repair. Always unplug the unit and disconnect it from power before touching any internal components. Avoid contact with the magnetron housing and high-voltage parts, which can retain dangerous charge even after unplugging. Use dry hands, wear safety glasses, and keep the work area free of metal objects that could cause shorts. If you smell burning plastic or hear buzzing, stop immediately and seek professional help. These precautions protect you while you diagnose common issues like heating failures or door interlock malfunctions. Brand guidance from Microwave Answers emphasizes documenting the model number and keeping a clear, organized work space.
Tools, Gear, and Materials You’ll Need
Having the right tools on hand prevents improvisation that can lead to injury or further damage. Essential items include an insulated screwdriver set, a digital multimeter for voltage checks, non-conductive gloves, and a flashlight to inspect tight corners. A model-specific service manual or the official KitchenAid documentation is invaluable for wiring diagrams and safety notes. Optional items like a non-contact voltage tester, camera or notebook for before-and-after references, and small containers to organize screws can save time. By assembling these tools before you start, you’ll keep the workflow smooth and reduce risk.
Diagnosing Common Symptoms and Likely Causes
Not heating, uneven heating, or the turntable not rotating are common symptoms with several possible causes. For not heating, consider the power supply to the outlet, the door interlock, and the high-voltage components like the diode and capacitor. If the door won’t stay shut, the interlock switch or its wiring is a likely culprit. Arcing or sparking typically points to a damaged waveguide cover or a dirty cavity, while a noisy operation often signals a worn turntable motor or bearing. In this section, you’ll learn how to document symptoms, perform safe, low-risk tests, and interpret results without jumping to conclusions. Remember to cross-check model-specific notes in the KitchenAid manual for wiring and component locations. For kitchenaid microwave oven repair, this approach emphasizes safety and model-specific details.

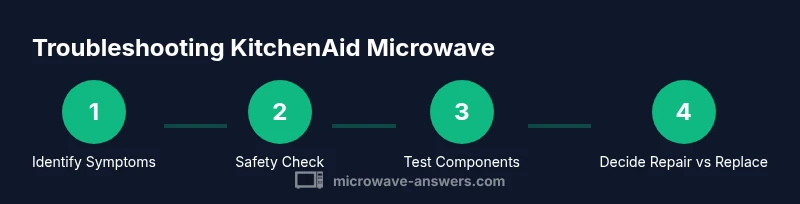

Step-by-Step Diagnostic Approach (Not a Full Repair)
This section provides a structured diagnostic flow you can follow cautiously. Step-by-step testing helps you verify suspected faults before deciding on replacement or repair. Step 1: unplug and confirm power is off. Step 2: inspect the door latch interlock for wear or misalignment and test its response with the door closed. Step 3: check visible wiring for damage and loose connectors. Step 4: verify the fuse and thermal fuse status, noting that some components require special tools to test. Step 5: test the high-voltage diode and capacitor only if you have training and proper safety gear. Step 6: assess the turntable motor by inspecting the drive belt and motor shaft for smooth rotation. Step 7: reassemble, initial power-on test with no food load, and then a cautious heating test if safe. Estimated time: 1-2 hours, depending on access and model. Pro tip: label each connector as you disconnect it to simplify reassembly.
Model-Specific Considerations for KitchenAid Ovens
KitchenAid uses common interlock assemblies and control boards across many models, but variations exist in door latch design, wiring color codes, and component placement. Always consult the exact model’s service manual before removing panels or testing components. Don’t assume component location based on another brand; mismatched diagrams can lead to incorrect testing and misdiagnosis. If you own multiple units or are working on a high-mileage model, document the exact model number, firmware revision, and any service history. This information speeds up diagnostics and ensures you’re using the correct wiring diagrams. General safety notes from Microwave Answers apply here: never bypass interlocks, and never power-test a live unit with the outer cover removed.
When to Replace Components or the Unit Itself
Not every fault is worth repairing. If testing reveals a failed high-voltage diode, capacitor, or control board, weigh the repair cost against a replacement unit. For many KitchenAid microwaves, replacement parts can approach a significant portion of a new unit’s price, especially for older models. In such cases, consider the expected remaining lifespan, warranty status, and whether labor costs would exceed a reasonable percentage of a new unit’s price. If the unit is past its warranty, shows recurrent failures, or you’re uncomfortable with high-voltage diagnostics, replacement may be the most reliable option. Microwave Answers analysis suggests prioritizing safety and cost-effectiveness when deciding repair versus replace.
Maintenance Tips to Extend Life of Your Microwave
Preventive care reduces the frequency of issues and extends service life. Regularly clean the cavity to prevent arcing caused by food debris and splatter; avoid abrasive cleaners that can damage enamel. Use a microwave-safe cover and rotate items to ensure even heating, reducing strain on the turntable motor. Periodically inspect the door seal for gaps or tears and replace it if necessary to maintain proper shielding. If you notice unusual smells, smoke, or excessive heat during operation, stop using the unit and seek professional assessment. This proactive approach aligns with Microwave Answers’ safety-focused philosophy and helps you avoid costly repairs.
Final Guidance: Safety, Warranty, and When to Call a Pro
Concluding with safety and clarity helps you decide when to pursue DIY repair versus professional service. Always check the warranty status before opening the unit; attempting self-repair can void coverage on some models. If a fault involves high-voltage components, a certified technician is the safer choice. For ongoing issues, keep a service log, including dates, symptoms, tests performed, and parts replaced. The Microwave Answers team emphasizes documenting model specifics and keeping manuals accessible. Remember: when in doubt, err on the side of safety and professional assistance.
Tools & Materials
- Screwdriver set (insulated)(Phillips and flathead; non-conductive handle preferred)
- Digital multimeter(For voltage checks and continuity tests; set to appropriate range)
- Safety gloves (non-conductive)(Protect hands from sharp edges and exposure to high voltage areas)
- Safety glasses(Eye protection during testing and disassembly)
- Model-specific service manual or manufacturer documentation(Wiring diagrams, schematics, and safety notes)
- Non-conductive pry tools(Useful for opening panels without damaging plastic snaps)
- Camera or notepad(Document wiring and component placements for reassembly)
- Work light/flashlight(Illuminates tight interior areas)
Steps
Estimated time: 1-2 hours
- 1
Unplug the microwave and verify power off
Disconnect the unit from the electrical outlet and wait at least 60 seconds to discharge any residual energy. This is the foundational safety step before touching any internal components.
Tip: Always assume capacitors may hold charge; test with a non-contact tester if available before touching internal parts. - 2
Inspect door latch interlock and door seal
Examine the door latch assembly for wear, cracks, or misalignment. Cycle the door several times to see if the interlock engages consistently and check the door seal for gaps that could affect safety interlocks.
Tip: Document any misalignment or loose connectors for later replacement. - 3
Check visible wiring and connectors
Look for loose, scorched, or frayed wires around the control board, door switch, and cavity area. Reseat any loosened connectors carefully and avoid tugging on wires.
Tip: Use a labeled tray to keep fasteners organized during reassembly. - 4
Test fuses and thermal fuse status
If you have a service manual, locate the fuse locations and test for continuity. Note that some fuses are not user-serviceable; replacement should use manufacturer-approved parts.
Tip: Do not bypass fuses; replacing a blown fuse is a strong indicator a component failed and needs proper replacement. - 5
Assess high-voltage components (diode & capacitor)
High-voltage components can retain dangerous energy. Only perform these tests if you have proper training and equipment, and follow model-specific guidelines. Evidence of swelling, discoloration, or leakage indicates replacement is required.
Tip: Never touch exposed HV components with the unit powered or while grounded. - 6
Evaluate the turntable motor and drive system
Inspect the turntable shaft, belt, and motor for smooth rotation. Listen for grinding noises and ensure the belt is intact and properly seated.
Tip: A binding turntable can mimic heating issues; correct belt placement often resolves it without component replacement. - 7
Power-on test and functional check
Reassemble enough to test basic operation: plug in, select a low-power test load (like water) if safe, and observe for proper cycling, heating, and turntable motion.
Tip: Limit tests to short cycles to avoid overheating or damage during early-stage diagnostics.
Common Questions
Is it safe to repair a KitchenAid microwave myself?
DIY repairs can be safe for basic, non-high-voltage tasks like cleaning and wiring reseats. For any work involving high-voltage components or sealed parts, seek professional service and consult the model manual.
DIY work is okay for simple fixes, but avoid high-voltage components. If in doubt, contact a pro.
What are common signs of a faulty door interlock in a KitchenAid microwave?
Common signs include the oven not starting, intermittent operation when closing the door, or the display behaving oddly. Inspect the latch, switch wiring, and mounting for wear.
Look for door latch wear or misalignment and test with the door closed to see if the oven responds.
Can arcing mean I need a new magnetron?
Arcing can be caused by a dirty cavity, damaged waveguide cover, or loose shielding. A magnetron failure is possible but not the first conclusion; diagnose by checking cavity and dielectric components first.
Arcing isn’t always the magnetron—check the cavity and shield first.
Will a blown fuse cause no power to the microwave?
A blown fuse can prevent the microwave from powering on. It’s a symptom rather than a diagnosis; test with the proper tool and replace only with the exact parts specified by the manual.
If the unit won’t power on, a fuse could be at fault, but confirm with the correct tester before replacing.
How long does KitchenAid microwave repair usually take?
Repair duration varies with the fault and access to parts. A simple fuse or interlock replacement can be completed in a few hours, while complex board diagnostics may take longer.
It depends on the issue and parts, but simple fixes can be done in a day with caution.
Should I replace the microwave instead of repairing?
If the unit is old, has recurring failures, or repair costs approach the price of a new unit, replacement may be more economical. Consider warranty status and energy efficiency too.
If repairs keep adding up, replacing might be wiser and more energy-efficient.
Watch Video
Main Points
- Always unplug before inspection.
- Prioritize door interlock and fuse checks for heating issues.
- Avoid high-voltage work unless trained.
- Document model details and test results for future reference.
- Consider professional service for high-risk components.
