How to Replace Over the Range Microwave: A Complete Guide
Learn how to replace over the range microwave safely with a clear, step-by-step guide covering compatibility, removal, installation, venting, and testing. Practical homeowner tips included.
You're here to learn how to replace over the range microwave with a newer model that fits your cabinets and venting. This guide outlines what you need, the safety steps, and a step-by-step install plan you can follow or hand over to a pro. By the end, you'll know when to DIY and when to hire help.
Why replacement is a practical choice
Over-the-range microwaves deliver cooking convenience and venting in one unit, but aging models can lose efficiency, vent performance, and reliability. If your current unit is noisy, has a weak vent, cabinets limit replacement options, or the warranty has expired, it may be time to replace. According to Microwave Answers, choosing a new model that fits your cabinet opening and venting setup reduces installation headaches and improves kitchen safety. The purpose of replacement isn’t just aesthetics; a proper fit ensures efficient ventilation and door-clearance reliability. In this section, we explore why homeowners opt to replace and how to assess your goals (faster cooking, better venting, quieter operation, or smarter controls).
Understanding compatibility: size, venting, and electrical needs
Before you buy, verify that a new over-the-range microwave will physically fit your cabinet opening and align with your existing venting path. Decide whether you want external venting (ducted to the outdoors) or a recirculating unit that uses a charcoal filter. Vent options influence duct size and mounting hardware, so read the installation manual carefully. Check that the electrical supply matches the unit’s requirements and that the circuit has enough capacity for the microwave and any other devices sharing the same circuit. If you’re unsure, consult a licensed electrician. This planning step helps prevent installation delays and risk of improper venting or electrical issues.
Planning your replacement: measuring and choosing a model
Take precise measurements of the existing cutout and clearance around the cabinet. Choose a model that matches the width, height, and depth of the opening, and consider the venting path and trim kit compatibility. Look for features that matter to you: sensor cooking, easy-clean interior, intuitive controls, and a reliable warranty. Confirm that the mounting hardware is included or that you’ll need a compatible bracket. Documentation from the manufacturer outlines required accessories and safety notes — keep it handy during the install. Think about future needs like taller pans, brighter interior lighting, or quieter fan modes as you compare models.
Removal of the old unit safely
Always unplug the unit first and confirm there is no power to the installation location. If your unit is vented externally, disconnect the ducting with a screwdriver or tin snips, taking care to avoid sharp edges. Support the unit while you remove the mounting screws and gently lower it onto a stable surface. If the unit is heavy, recruit a helper; set the old unit aside, and inspect the opening for damage or obstructions. Take photos of the vent connections before removal to guide the new installation. Clean the area and prepare to install brackets and new ductwork as needed.
Installing the new microwave: steps and mounting
Position the new microwave near the opening, attach any mounting bracket, and verify vent alignment with the existing duct or recirculation path. Secure the unit to the cabinet frame with the provided screws, ensuring the door clears the carcass and opens fully. Reconnect the venting pathway, making sure joints are sealed and straight. Plug the microwave into the dedicated outlet (or a grounded circuit) and test the rotation and light functions before finalizing. If the unit includes a trim kit, install it after the main body is mounted and verify cosmetic fit. Take time to level the unit for even door operation and door alignment before final screws are tightened.
Venting considerations: ducting vs recirculating
External venting requires a duct path to the outdoors; keep bends to a minimum and use appropriate ducting material to maximize airflow. Recirculating models use a grease-laden filter and charcoal filter to vent air back into the kitchen; these models are easier to install in tighter spaces but may not perform as well at moisture removal. Inspect the duct diameter and ensure bends are smooth to avoid backpressure. Label the direction of air flow and test for leaks with a flashlight and a small amount of soapy water on joints. If your home’s layout complicates vent routing, a professional can advise on best options.
Electrical and safety considerations
Most over-the-range microwaves require a dedicated, grounded outlet; avoid sharing a circuit with high-demand appliances. Ensure the outlet is positioned where it won’t be blocked by the microwave’s door and that the cord length allows comfortable fit. Check for GFCI requirements in damp areas and verify that the circuit breaker capacity meets the unit’s load. If you’re uncertain about wiring or circuit changes, hire a licensed electrician. Do not attempt to splice wires or modify building wiring yourself.
After installation: testing and maintenance
With power restored, run a quick test cycle to verify cooking functions, timer, vent operation, and interior light. Check that the door closes cleanly and seals without gaps, and confirm that the vent is drawing air as expected. Schedule periodic maintenance: clean the grease filter, inspect vent connections, and keep the area free of clutter. Keep the model’s manual handy for troubleshooting and warranty information. If you notice unusual smells, sparking noises, or the unit overheating, turn off power and consult a professional.
Tools & Materials
- Measuring tape(For verifying cabinet opening and clearance)
- Phillips screwdriver #2(For mounting screws and brackets)
- Flathead screwdriver(Useful for stubborn vent clamps and trim clips)
- Cordless drill(Pre-drill holes for mounting screws if needed)
- Level(Keep the microwave perfectly level for door alignment)
- Voltage tester(Confirm power is off before removing/connecting)
- Safety goggles(Protect eyes from debris during removal and drilling)
- Duct tape(Seal vent connections where appropriate; avoid leaks)
- Auxiliary helper(Handling a heavy unit is safer with a second person)

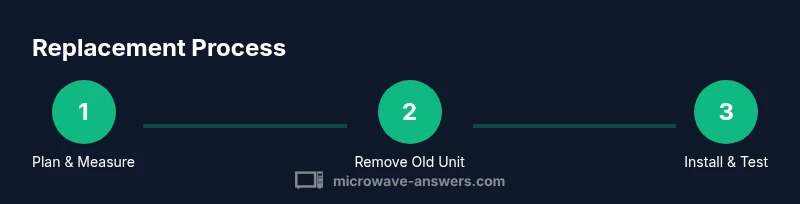

Steps
Estimated time: 60-180 minutes
- 1
Power down and measure
Begin by unplugging the old unit and measuring the current opening to confirm it will accommodate a replacement. Use the tape measure to check width and height, and note any obstructions from cabinets or shelves. The goal is to prevent discovering a mismatch late in the install.
Tip: Double-check door clearance by simulating full open/close with a helper to ensure no interference. - 2
Remove the old unit
Support the microwave while you unscrew mounting brackets, lift it free from the cabinet, and set it on a sturdy surface. If ducting is attached, detach it carefully and store any screws or clamps for reuse if compatible. Take a few photos of how vents and wires connect to guide the new installation.
Tip: Ask a helper to stabilize the unit—these appliances are heavy and awkward. - 3
Prepare the opening for the new unit
Inspect the opening for damage and clean any dust. If the new model requires a different vent path, plan where ducts will route and confirm compatibility with the existing ductwork or filters. Ensure the new unit will sit flush against the front edge for a clean look.
Tip: Keep a small flashlight handy to inspect tight corners behind the cabinet. - 4
Check electrical readiness
Verify you have a grounded outlet in the correct location and that it can handle the microwave’s load. If a dedicated circuit is not available, plan for an electrician to install one. Do not splice wires or modify building wiring yourself.
Tip: Power off at the breaker panel before any wiring checks to avoid shock. - 5
Mount the new bracket and align vent
Attach the mounting bracket to the cabinet frame as per the manufacturer’s instructions. Align the new microwave so vent holes or recirculation paths line up with the existing duct or filter, and ensure the unit sits level before tightening.
Tip: Use a level across the face of the microwave to confirm straight alignment. - 6
Install and connect the new microwave
Slide the microwave into place, secure it with the provided screws, reconnect the venting path, and plug into the outlet. If required, install the trim kit after the main body is mounted. Confirm door clearance and reopen/close to verify fit.
Tip: Do a quick functional test after connection—touch pad, light, and exhaust. - 7
Test fit and finalize
With everything connected, perform a full run-through: timer, sensor cooking, vent operation, and interior light. Check for unusual noises or smells during the test. Make any final adjustments to alignment or vent seals.
Tip: Document model numbers and settings for future reference. - 8
Cleanup and safety wrap-up
Tidy up the work area, store tools, and keep a copy of installation instructions and warranty information. Leave a note on the panel if there are any maintenance reminders or service intervals.
Tip: Schedule periodic checks for grease buildup in the vent and filters.
Common Questions
Do I need to disconnect power before removing the old microwave?
Yes. Always unplug the unit and verify there is no power at the outlet before handling the microwave or vent connections. This prevents shocks and accidental activation during removal.
Yes—unplug the unit and ensure the outlet is dead before starting removal.
Will my existing venting ductwork work with a new model?
Vent compatibility depends on whether you choose external venting or a recirculating unit. Some old ducts may need adjustments or a new chimney cap, but many new units provide flexible venting options. Always verify duct size and path in the manual.
Check if you’ll vent outside or recirculate; you may need to adjust ducts.
Can I install an over-the-range microwave myself, or should I hire a pro?
If you have basic carpentry and electrical skills, you can install a standard unit using the manufacturer’s instructions. However, improper venting or wiring can cause safety risks, so consider hiring a pro if you’re unsure.
You can DIY if you’re comfortable with mounting and basic wiring; otherwise hire a pro.
What common mistakes should I avoid during replacement?
Avoid choosing a unit that doesn’t fit the opening or vent path, neglecting to level the unit, and ignoring electrical requirements. Also, don’t reuse old ducting that leaks or is difficult to seal.
Don’t buy a unit that won’t fit and don’t skip the leveling step.
What is the typical price range for replacing an over-the-range microwave?
Prices vary by model and features, but plan for a range that accommodates installation costs, trim kits, and possible electrical work. Budget for a broader range rather than a single price.
Prices vary; expect a range depending on features and whether electrical work is needed.
What maintenance should follow installation?
Regularly clean the grease filter, check vent seals, and keep the area around the unit clear. Review the user manual for warranty guidelines and troubleshooting tips.
Keep the vent clean and follow the manual for maintenance and warranty details.
Watch Video
Main Points
- Measure opening accurately before buying
- Choose venting type (ducted vs recirculating) early
- Secure mounting and verify door clearance
- Test all functions and keep warranty docs handy
