Microwave Waveguide Cover Replacement: A Step-by-Step Guide
Learn how to safely replace a microwave waveguide cover with this practical, step-by-step guide. Get the right tools, safety tips, installation steps, and troubleshooting to maintain reliable performance.
You can replace a microwave waveguide cover to restore safe operation and prevent arcing. Gather a screwdriver, replacement waveguide cover, non-metallic gloves, and a flashlight. Power off, unplug, remove the interior panel, swap the cover, reseal with caution, and test with a brief run. This guide covers compatibility checks and safety tips.
What is a microwave waveguide cover and why it matters
A microwave waveguide cover is a thin plate that protects the magnetron, the core energy source of the oven, from food particles and moisture while allowing microwaves to pass through. Over time, the cover can crack, scorch, or warp, compromising the seal and creating the potential for arcing inside the cavity. When arcing occurs, stray sparks can damage the magnetron or insulation, reducing efficiency and potentially causing a fire risk. Replacing a damaged waveguide cover is a practical, preventative maintenance task that home cooks can perform with basic tools. According to Microwave Answers, a quick replacement can restore safe operation and protect the microwave’s interior without a full service call. This kind of maintenance aligns with general safety guidelines for household appliances and reduces long-term repair costs. By focusing on a replacement that matches your model, you preserve performance and avoid cascading failures that come from a compromised seal.
Symptoms of a damaged cover and why replacement is often the right move
Common signs include visible cracks, scorched edges around the waveguide opening, unusual smells during operation, or intermittent arcing noises. If you notice any of these, it’s wise to inspect the cover and the adjacent sealing area. A damaged cover can allow moisture, food debris, and heat to reach the magnetron, accelerating wear and increasing the chance of electrical discharge. Because the waveguide is an integral part of how microwaves are guided into the cooking cavity, even small defects can affect heating performance. Microwave Answers analysis, 2026, indicates that addressing cover damage early reduces the risk of more serious failures and keeps energy efficiency higher. While this task can be completed by a confident DIYer, verify that you’re using an approved replacement part designed for your specific model to ensure a proper fit and seal.
Compatibility and selecting a replacement that fits your model
Not all waveguide covers are interchangeable; the size, shape, and edge gasket vary by manufacturer and model. Before buying, locate your microwave’s model number (usually found on a label inside the door frame or behind the grille). Compare the original part’s dimensions and mounting method with offered replacements, focusing on edge seal presence and screw hole alignment. If you have any doubt, contact the manufacturer or consult the user manual for the exact part name. Using a non-compatible cover can lead to improper sealing, overheating, or arcing. A model-compatible part ensures a snug fit, consistent sealing, and safe operation over time.
Safety considerations and prep work before you begin
Safety is the top priority. Unplug the unit and allow any residual charge to dissipate before you touch internal components. Work in a well-lit, clean area to prevent dropping small screws or losing parts. Use non-metallic gloves to protect your hands from sharp edges, and keep a flashlight handy to inspect the cavity. Remove jewelry and avoid wearing loose clothing that could snag internal components. If you’re unsure about your model’s compatibility, consult a professional rather than forcing a fit.

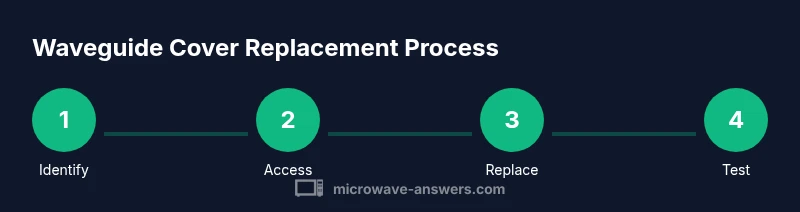

Step-by-step overview: installation and testing (high level)
The installation involves removing the access panel, swapping in a compatible waveguide cover, and resealing the panel. After reassembly, you’ll run a no-load test to verify there’s no arcing or abnormal noise. This broad sequence helps you understand the flow before diving into the detailed steps and ensures you’re prepared for a careful, methodical replacement.
Tools & Materials
- Replacement waveguide cover(Compatible with your microwave model; check the model number and size before purchasing)
- Phillips head screwdriver(Typically #2 sized; ensure a comfortable fit for the screws)
- Isopropyl alcohol (70% or higher)(For cleaning the waveguide area before reassembly)
- Lint-free cloth(Use to wipe away residue without leaving fibers)
- Non-metallic gloves(Protect hands from sharp metal edges in the cavity)
- Flashlight or headlamp(Inspect the cavity for damage while the panel is off)
- Tape (optional)(Lightly hold panel edges during reassembly if needed)
Steps
Estimated time: 25-40 minutes
- 1
Power down and unplug
Begin by entirely unplugging the microwave and removing any nearby power cords from the area. This ensures there is no residual electrical power when you access internal components.
Tip: Double-check the outlet with a tester before touching any internal parts. - 2
Access the waveguide area
Remove the inner access panel according to your model’s design. Some units use screws; others have clips. Keep track of fasteners so they aren’t lost.
Tip: Take a photo of screw locations before removal to simplify reassembly. - 3
Remove the old waveguide cover
Carefully detach the damaged waveguide cover. Note its orientation and the gasket or seal that sits around the edge. Place the old cover aside for disposal in a proper waste bin.
Tip: Avoid bending surrounding panels or nicking the magnetron cavity. - 4
Clean and inspect the cavity
Wipe the area with isopropyl alcohol and a lint-free cloth. Look for scorch marks, warping, or damage to the edge where the cover sits. If you see any cracks or deformities, consider replacing more components or consulting a professional.
Tip: A light inspection with a flashlight helps reveal hidden cracks. - 5
Install the new cover
Place the replacement waveguide cover in the correct orientation and seat any gasket or seal evenly. Reattach screws snugly but not over-tightened. Ensure the cover sits flush with the waveguide opening.
Tip: Use a small screwdriver to avoid stripping screw heads. - 6
Reassemble and test
Reinstall the interior panel, plug the unit back in, and run a short idle test with no food to verify there is no arcing or unusual noise. Do not run a full-cooking cycle until you confirm safe operation.
Tip: Stand back during the test in case arcing occurs and you need to power off immediately.
Common Questions
What is a microwave waveguide cover, and why replace it?
The waveguide cover shields the magnetron from food particles and moisture. A damaged cover can arc and damage the cavity. Replacing it with a compatible part restores protection and performance.
The waveguide cover protects the magnetron from damage and moisture; replacing a damaged one restores safety.
Can I use a non-model-specific replacement?
Compatibility matters. Use a replacement designed for your exact microwave model to ensure a proper fit and seal.
Use the manufacturer-recommended part for your model.
Is it safe to run the microwave during replacement?
No. Unplug the appliance and wait for capacitors to discharge before handling internal parts. Never operate with a missing cover.
Unplug the unit and avoid using it while parts are exposed.
How long does installation typically take?
Most people complete the replacement in under an hour, depending on access to the waveguide area and screw layout.
Expect around 30 minutes to an hour with basic tools.
What if the old cover is cracked but the magnetron seems fine?
A cracked cover can still allow moisture and debris in, increasing arcing risk. Replace to restore sealing and protection.
Don’t reuse a cracked cover; replace for safety.
Watch Video
Main Points
- Verify model compatibility before buying a replacement.
- Work with the microwave unplugged and powered off at all times.
- Install the cover flush with no gaps to prevent arcing.
- Test with a no-load run to confirm safe operation.
