Over Range Microwave Dimensions: A Practical Guide
Learn how to interpret over range microwave dimensions, including standard widths, heights, and depths. Get measuring tips, space planning guidance, and buying considerations for safe, fit-for-purpose setups.
The typical over-range microwave dimensions fall into a broad range: about 29–30 inches wide, 16–20 inches tall, and 15–18 inches deep. These exterior measurements help you plan cabinet openings, ventilation clearance, and safe clearance above the stove. Always verify the exterior size against your space and the installation kit included to avoid fit issues.
What 'over range microwave dimensions' means
When people talk about over range microwave dimensions, they mean the exterior measurements that determine fit above the kitchen stove. These numbers influence cabinet openings, ventilation clearance, and overall kitchen ergonomics. According to Microwave Answers, standard OTMR dimensions vary by model but share common width, height, and depth ranges that align with typical 30-inch-wide cabinetry and standard venting configurations. The word 'dimensions' in this context refers to the exterior size you’ll see listed in product specs and installation guides, not the interior cavity. Being precise here saves you from ordering a unit that won’t fit or interfere with a range hood. In short, the focus is on how wide, tall, and deep the unit sits above your cooktop.
Standard external dimension ranges
Most over range microwaves are designed to fit in a standard 30-inch wide opening, but the external dimensions can vary. Typical width ranges from 29 to 30 inches, height from 16 to 20 inches, and depth from 15 to 18 inches. These ranges accommodate different venting styles, trim kits, and control panel configurations. When you’re selecting a model, start by measuring your cabinet face frame or integrated cabinet opening, then compare to the product’s listed exterior size. Remember that the handle, door swing, and vent grille can add to the overall footprint, so always check the drawn measurements in the installation manual.
Width: the most visible dimension
Width is usually the most conspicuous part of the unit once installed. The majority of OTMRs sit around 29–30 inches wide, which aligns with standard 30-inch cabinetry. If you have a narrower cabinet, you may need to consider a trim kit or a model with a smaller footprint. Always measure the space between side walls and any adjacent cabinetry, including any side panels. Be mindful of wall studs and backsplash, which can affect the available width and clearance. Additionally, confirm that the adjacent cabinets offer enough clearance for installation screws and vent connections.
Height and depth: balancing clearance and ventilation
Height and depth influence how the unit sits in relation to the stove and upper cabinets. Typical OTMR height is in the 16–20 inch range, while depth often runs from 15–18 inches. Beyond the numbers, you must account for trim kits, ventilation grilles, and any protruding handles. Adequate vertical clearance above the cooktop is essential for safe operation and to maintain air flow. If your kitchen has unusually tall or shallow cabinetry, you may encounter non-standard heights or depths. In such cases, inspect the manufacturer’s installation diagram to confirm required clearances and mounting points.
How installation affects usable space above the stove
Installing an OTMR changes how much usable space you have above the stove. A unit with extra height or a protruding vent can reduce the vertical clearance to the hood or shelving. In kitchens with low ceilings or shallow cabinets, you may need to relocate or modify the venting path or select a compact unit within the standard range. Before purchasing, map out the entire run from the cooking surface to the ceiling and verify that door swing and hinge clearance don’t collide with existing cabinetry.
How to read product specs and measurement diagrams
Product specs list exterior dimensions as W x H x D. For accuracy, read the diagrams that show front, side, and top views. When measuring, exclude door trim, handle protrusions if manufacturers provide 'with handle' dimensions, or use 'door open' dimensions if relevant. Note whether stated height includes anti-tip feet or feet adjusters. Some models include heat vents that extend or recess beyond the main body; absorption of space can affect installation depth. If you’re unsure, contact the retailer or the manufacturer for a precise measurement.
The impact of venting and exhaust on dimensions
Vent configuration can alter the external footprint. Vented units may require additional space behind the unit or above it to accommodate ducting, which can slightly increase the effective depth. Ductless or ventless models might have different grille arrangements that impact width visually. Read the venting section in the manual to determine whether a shallow cabinet, a dedicated exhaust duct, or a recirculation kit is recommended. In all cases, ensure your chosen model maintains proper clearance around the vent outlets for safe operation and effective exhaust.
Designing a kitchen layout around an OTMR
When planning a new kitchen or remodeling, design the layout to accommodate the OTMR’s width and depth, plus required ventilation. Reserve space above the stove for mounting, and account for any overhead cabinets or shelves that could limit access. Reserve 2–3 inches of side clearance, verify the cabinet opening height, and ensure the hood vent can align with the exhaust outlet. A plan view helps you visualize door clearances, switch locations, and the path to power outlets.
Common configuration scenarios and tips
Scenario A: Standard cabinet above a gas range. A 30-inch OTMR fits a typical open cabinet design; choose a unit with a compact vent and a trim kit to cover gaps. Scenario B: Small kitchen with limited vertical space. Look for a unit with 16–18 inch height and shallow depth, then verify that the install leaves space for the hood and the cabinet panel. Scenario C: Retrofit in an older kitchen. Add shims only if the manual permits, and consider professional installation to ensure stable mounting and proper vent alignment. In all scenarios, measure twice and confirm all exterior dimensions before buying.
Final checks before you buy
Double-check that the exterior dimensions align with your cabinet opening, hood configuration, and available ventilation. Confirm required clearances above the OTMR and ensure the unit’s door swing won’t collide with nearby drawers or walls. Review the installation kit contents, including trim kits and mounting brackets. If dimensions are close to the limit, consider a model with adjustable feet or a slightly smaller width, and always consult the installation guide or a pro if you’re uncertain.
Reference dimensions for standard over range microwaves
| Dimension | Typical Range | Notes |
|---|---|---|
| Width (W) | 29-30 inches | Common OTMR width; designed for standard 30-inch cabinets |
| Height (H) | 16-20 inches | Height varies with venting and trim kits |
| Depth (D) | 15-18 inches | Front-to-back depth; includes control panel protrusion |
Common Questions
What is the standard width of an over-range microwave?
Most OTMRs are designed for a 30-inch cabinet opening, with exterior widths typically around 29-30 inches. Always verify the product spec to confirm the exact width.
Most over-range microwaves fit a 30-inch opening; check the exact width on the product specs.
How do I measure space above my stove for an OTMR?
Measure from the cooktop surface to the bottom of the upper cabinet or hood. Subtract any clearance required by the unit’s venting and trim kit. Compare results to the unit’s installation diagram.
Measure from the stove to the cabinet above, and read the install diagram for clearance.
Can non-standard widths fit in a kitchen?
Some models offer narrower footprints or trim kits, but most installations rely on standard 30-inch openings. If you have a non-standard space, consider custom cabinetry or a different placement.
Some models fit non-standard spaces, but standard widths are most common.
What clearance is recommended above OTMR?
Manufacturers typically specify some clearance above the unit for ventilation; this varies by model. Check the installation guide for exact measurements and ensure adequate airflow.
Check the manual for the exact clearance and make sure airflow isn’t blocked.
Do all OTMRs fit under standard cabinets?
Most OTMRs are designed to fit under standard upper cabinets, but depth and venting configurations vary. Always confirm with the product specs and your cabinet dimensions.
Most do, but verify depth and venting before buying.
Should I hire a professional for installation?
If space is tight or vent routing is complex, a professional installer can ensure a safe, compliant mount and proper vent alignment.
If in doubt, hire a pro for a safe install.
“Dimensions matter more than model numbers when planning a safe OTMR install. Measure the space, read the diagrams, and verify with the manual.”
Main Points
- Know your space and measure twice before buying

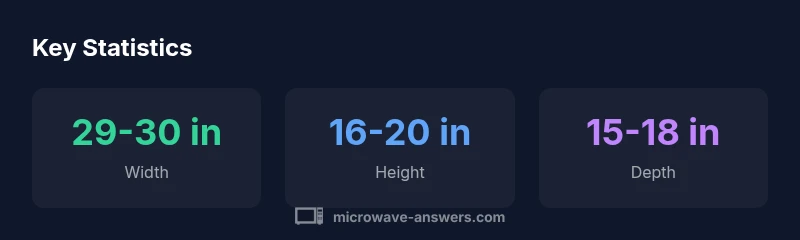

- Expect typical exterior ranges to be width 29-30", height 16-20", depth 15-18"
- Check venting, trim kits, and door clearance early
- Consult the installation guide for exact clearances
